DY-807Intelligent temperature controller for air conditioner

DUOYE-807
Installation Instructions
Please follow the instructions to make the correct installation.

Operating instructtions
1. If you use hard plastic wire in installation, please bend it in a
appropriate angle;
2. The environment for Thermostat using: temperature between
0℃~45℃.

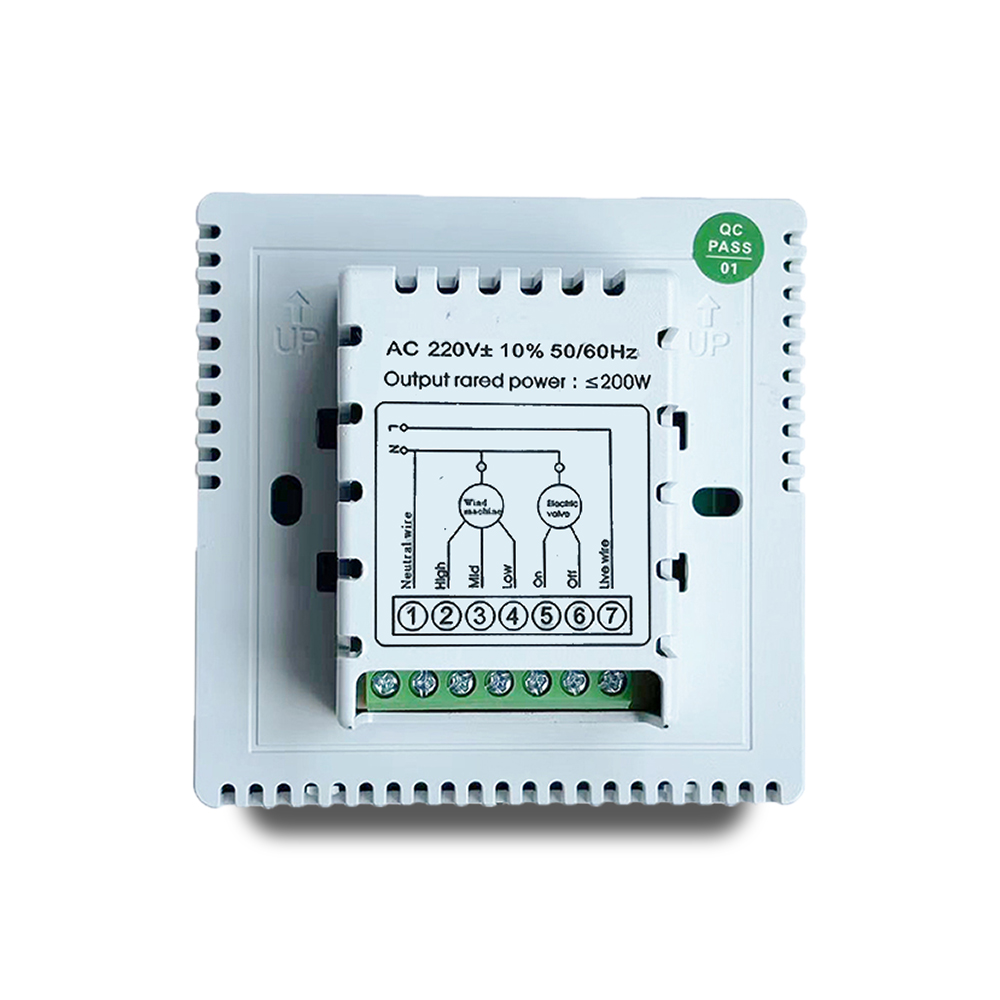

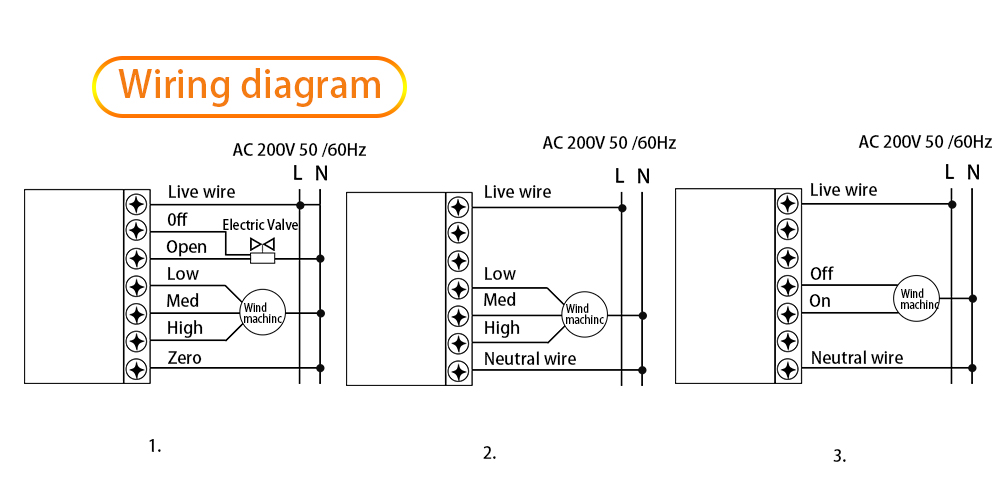

3. Please make the connection according to the wiring diagram;

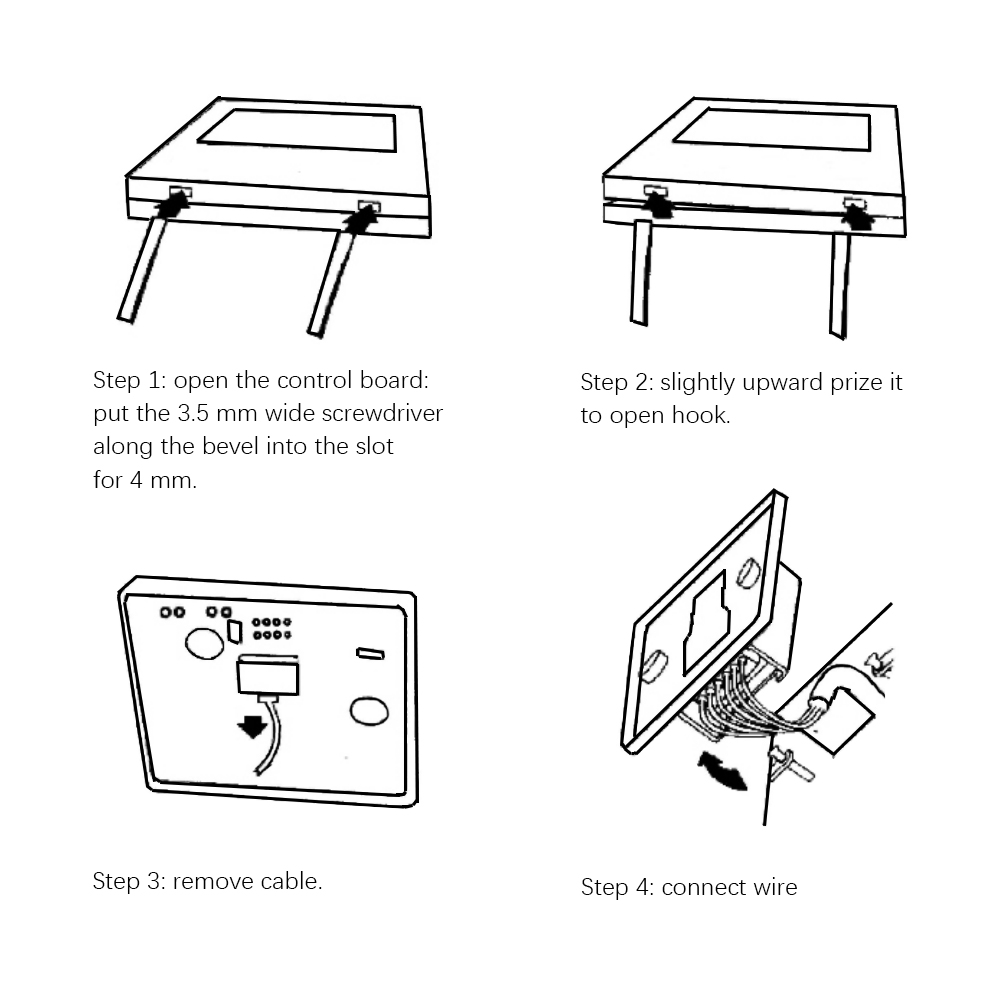

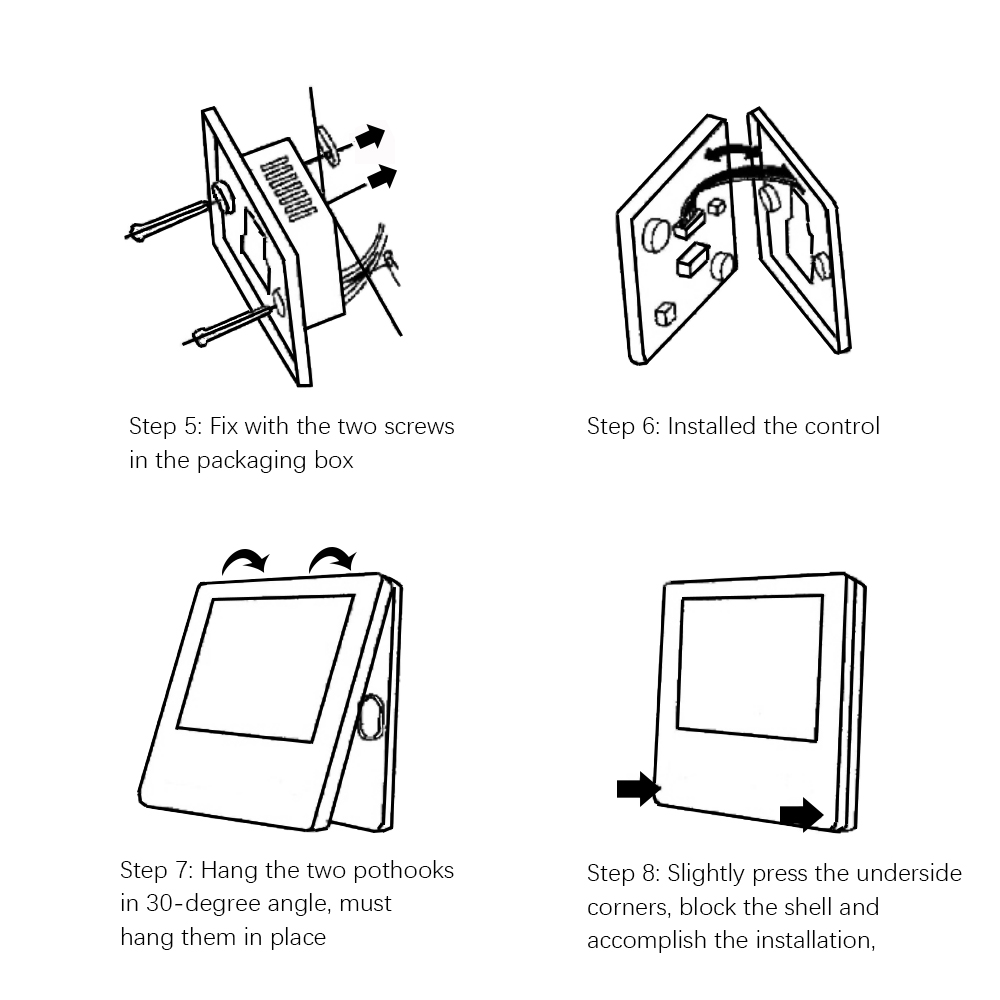

4. Please install in accordance with the correct installation diagram;

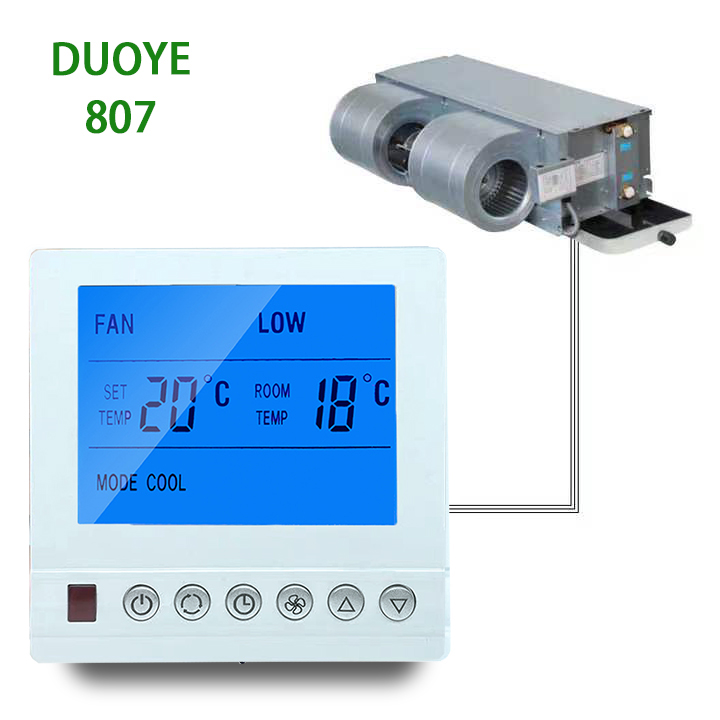

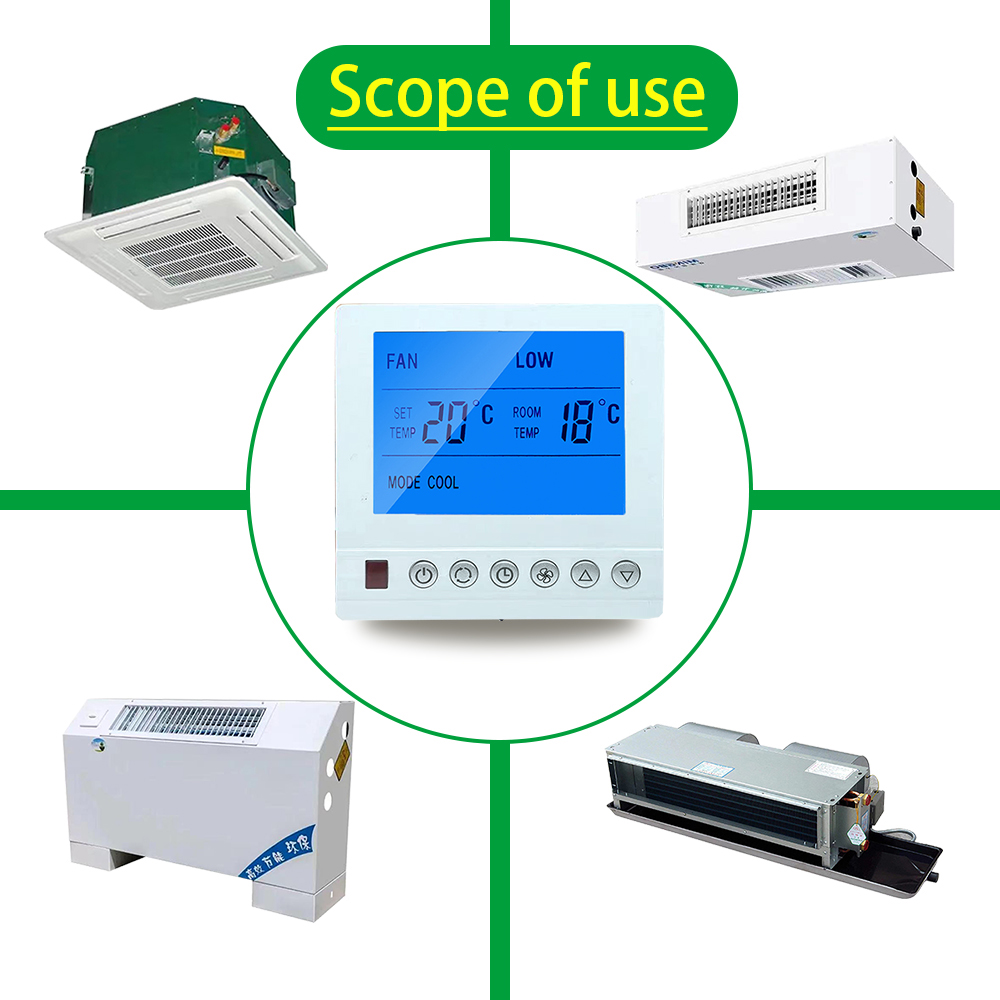

5. One thermostat can only drive one electric fan-coil and a
electro motion valve;
6. One thermostat can only drive one electrical outlet or an
electrical air valve;
7. It can not be used to drive electromagnetic components such as
electromagnetic valve;
8. Do not forcibly draw the wire;
9. Don't squeeze play on the LCD during the installation process,
and please do not knock the thermostat;
10.The LCD type of thermostat is exactitude electronic equipment,
so please do not knock or drop it during the installation, and do not
deform the back shell;
11. Do not drop it into construction mud.

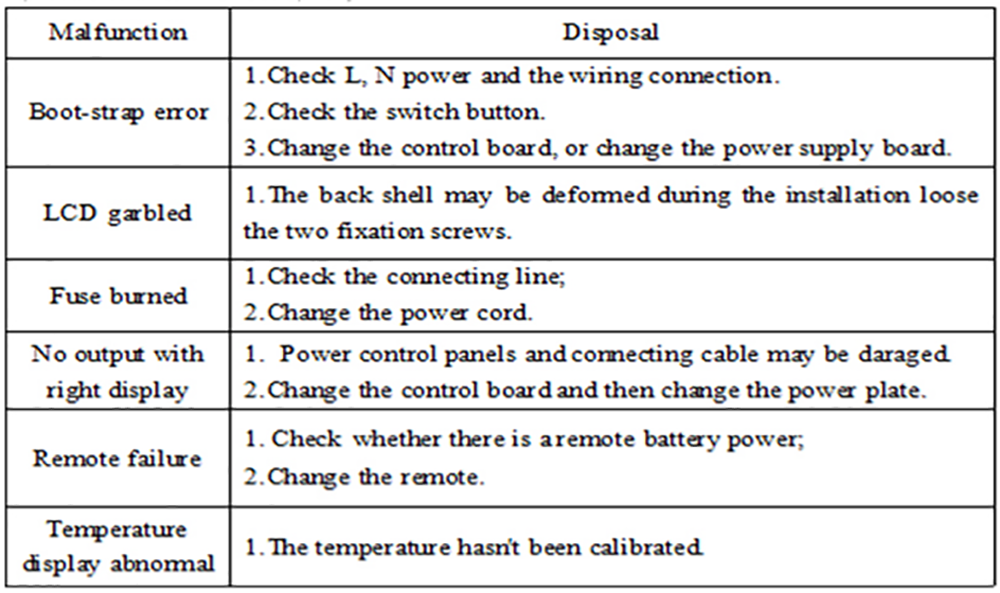

Malfunction disposal
Statement: only professional technical personnel can mainta in the
products of our company.

Warranty Service
18 months warranty service is from date of purchase.
Note:The Service Center shall not be liable for any LCD scratch,break
or damage to wire, back board, shell power supply board due to loading
or installation.

Sale support
The products of our company may enjoy life-long service in accordance
with the regulations, the company will make a certain charge to the service
out of the warranty period or product quality.
Packaging Annex
Manual   I
Bolt  2

Specifications
Set temperature range:5~35℃
Temperature accuracy: ±1℃
Rated output power:  <200W
Consumable power:  <2W
Operating:  AC220V ±10%,50/60Hz
Traverse requirements:   0.5mm²≤ Voltage≤2.5mm2

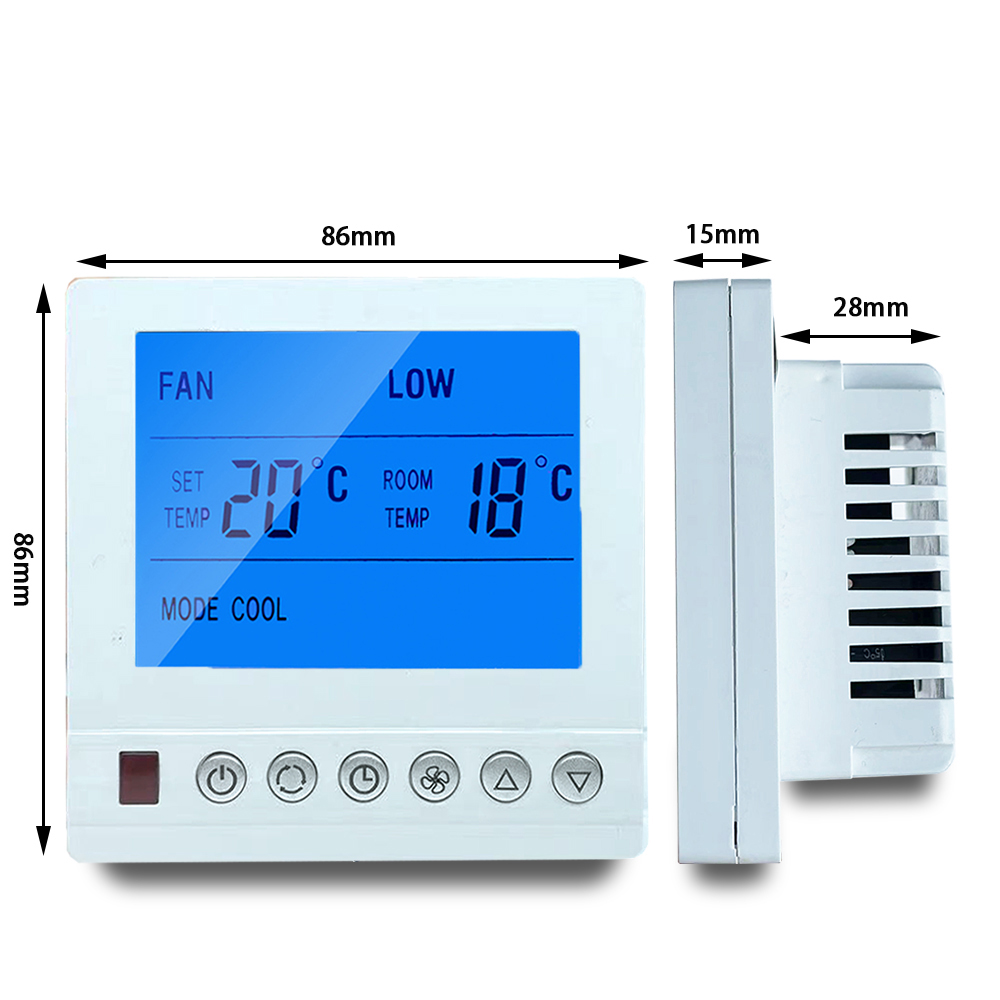

Figure size:   86x86x13mm(Section diameter 86standard box)
Aperture distance for installation:  60mm
