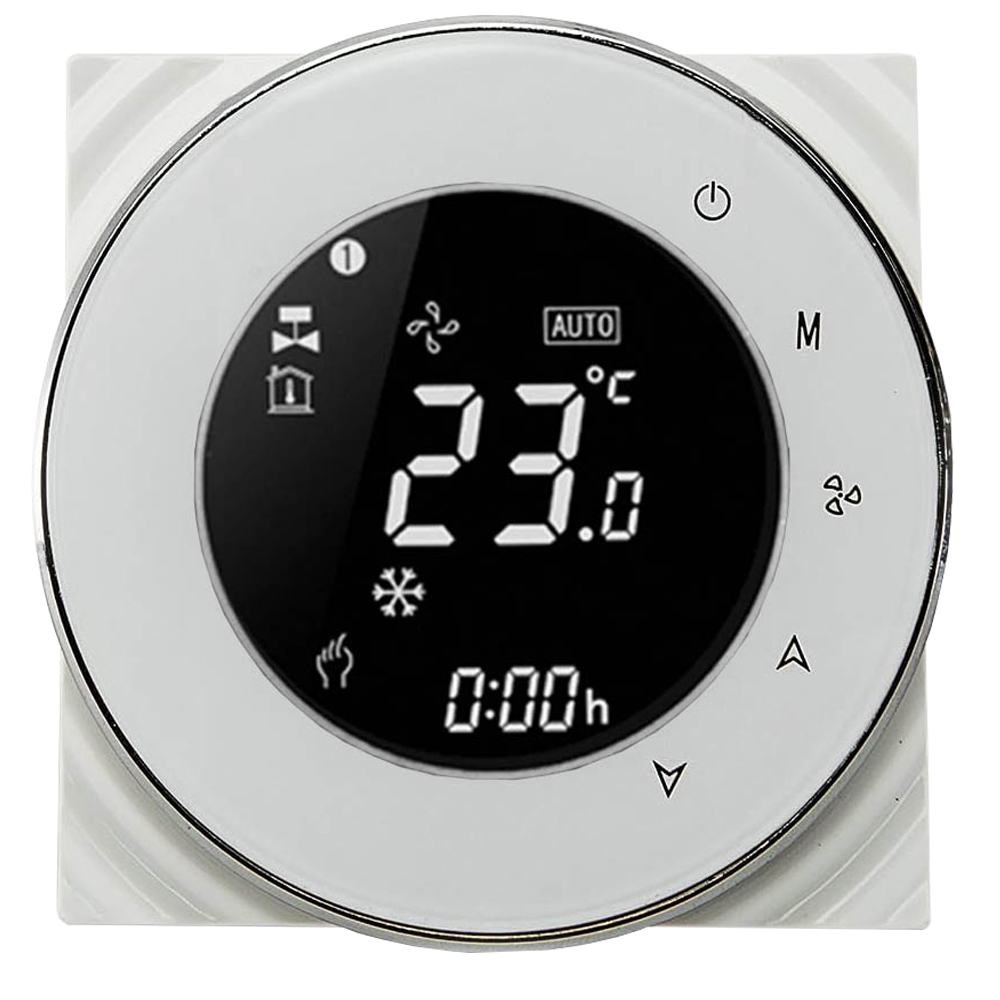

WiFi Smart Touch Thermostat Temperature Controller For 2 Pipe Central Air Conditioner 3 Speed Fan Coil Unit Control

Welcome

 Please confirm that this product is suitable for your heating
 equipment before installation ;

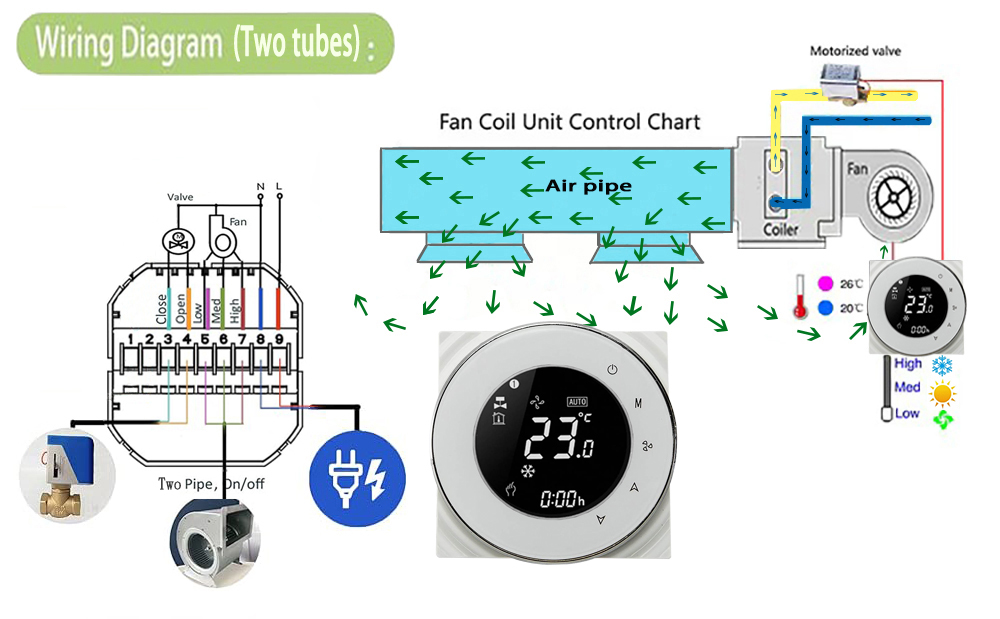

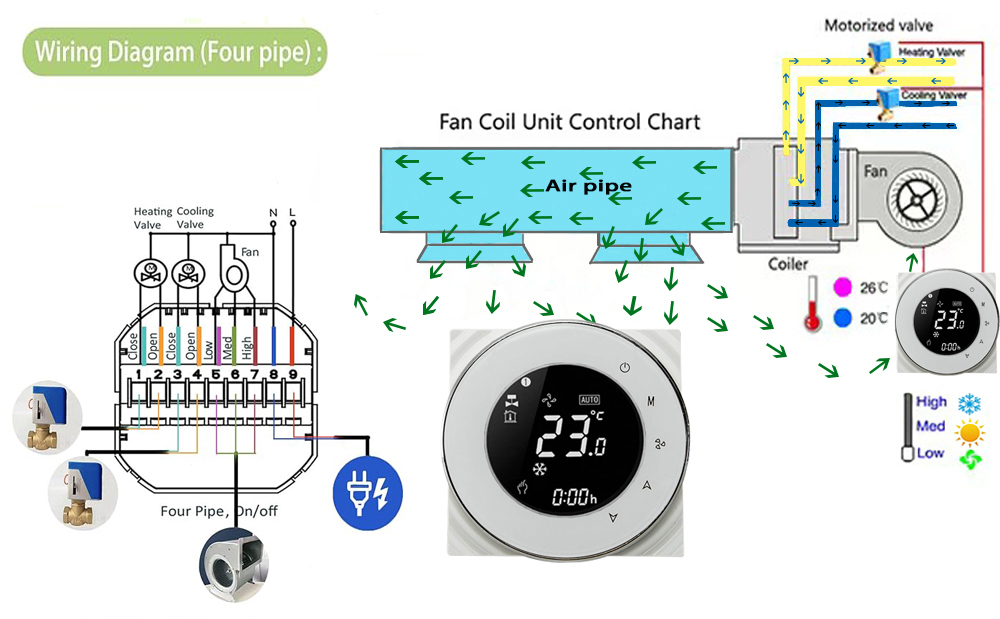

* Before installation or maintenance , please make sure to keep the power off ,* Please strictly follow the wiring diagram for wiring installation ;* Installation to the wall , please confirm that the fasteners are suitable for this product ;
* Do not pull the cable too hard , otherwise the product will be damaged ;* If a hard plastic wire is used in the installation process , it must be bent to an appropriate angle in advance ;
* Please arrange for professionals to install ;
* Please contact the after - sales service for equipment failure , please do not
 try to repair it yourself ;
* After installation , please refer to this manual to check again to ensure normal and safe use , and keep this manual properly .TECHNICAL DATA

 Power Supply :95~240 VAC ,50~60Hz or 24V DC / AC ,50~60Hz Please check the information laser printed on the back of the thermostat for the actual voltage .
 Fan Relay Amps Resistance :5A; Inductive :3A
 Valve Relay Amps Resistance :3A; Inductive :1A
 Sensor :NTC3950,10K
 Set Temp . Range :5-35℃
 Accuracy :±0.5℃
 Dispaly Temp . Range :5~99℃
 Ambient Temp .:0~45℃
 Ambient Humidity :5~95% RH ( Non Condensing )
 Storage Temp .:-5~45℃
 Timing Error :<1%
 Power Consumption :<1.5W
 Shell Material : PC + ABS ( Fireproof )

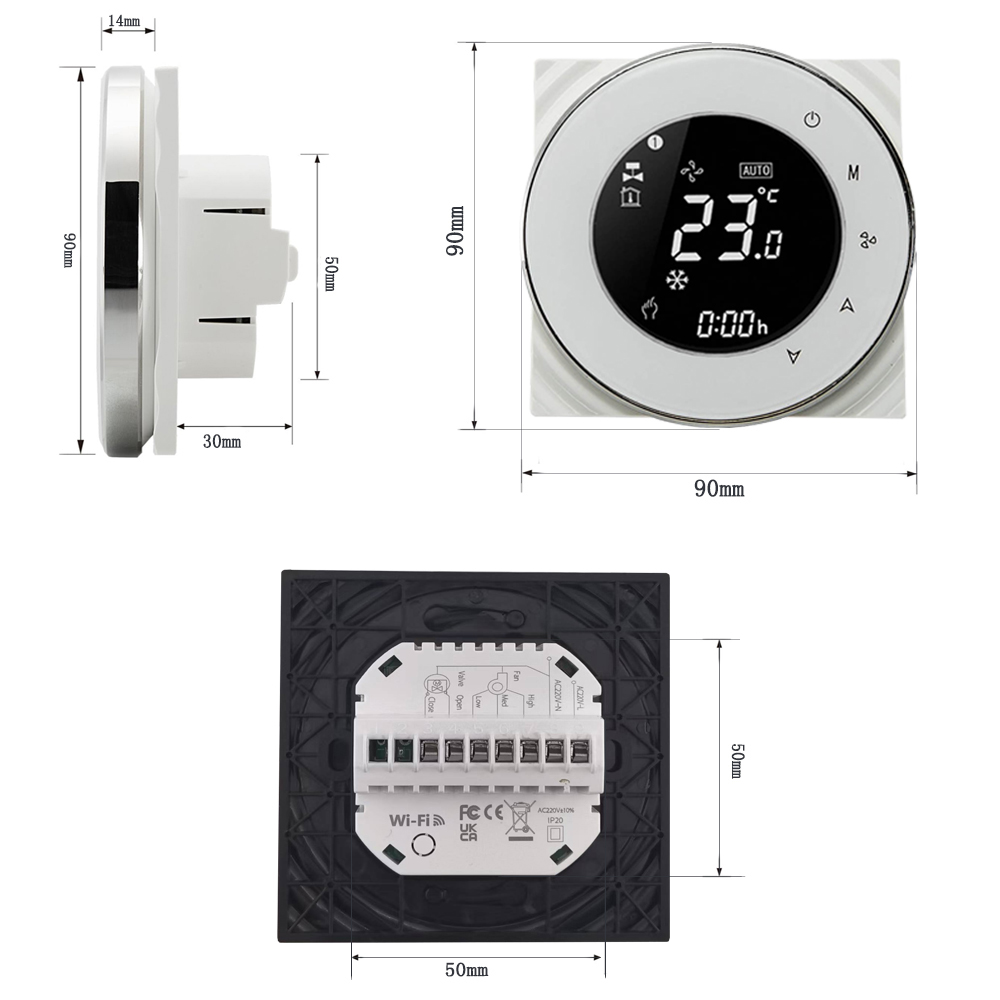

 Installation Box :86*86mm Square or European 60mm Round Box
 Wire Terminals : Wire 2 X 1.5mm2 or 1x2.5mm2
 Protection Class :IP20
 Buttons : Capacitive Touch Buttons
