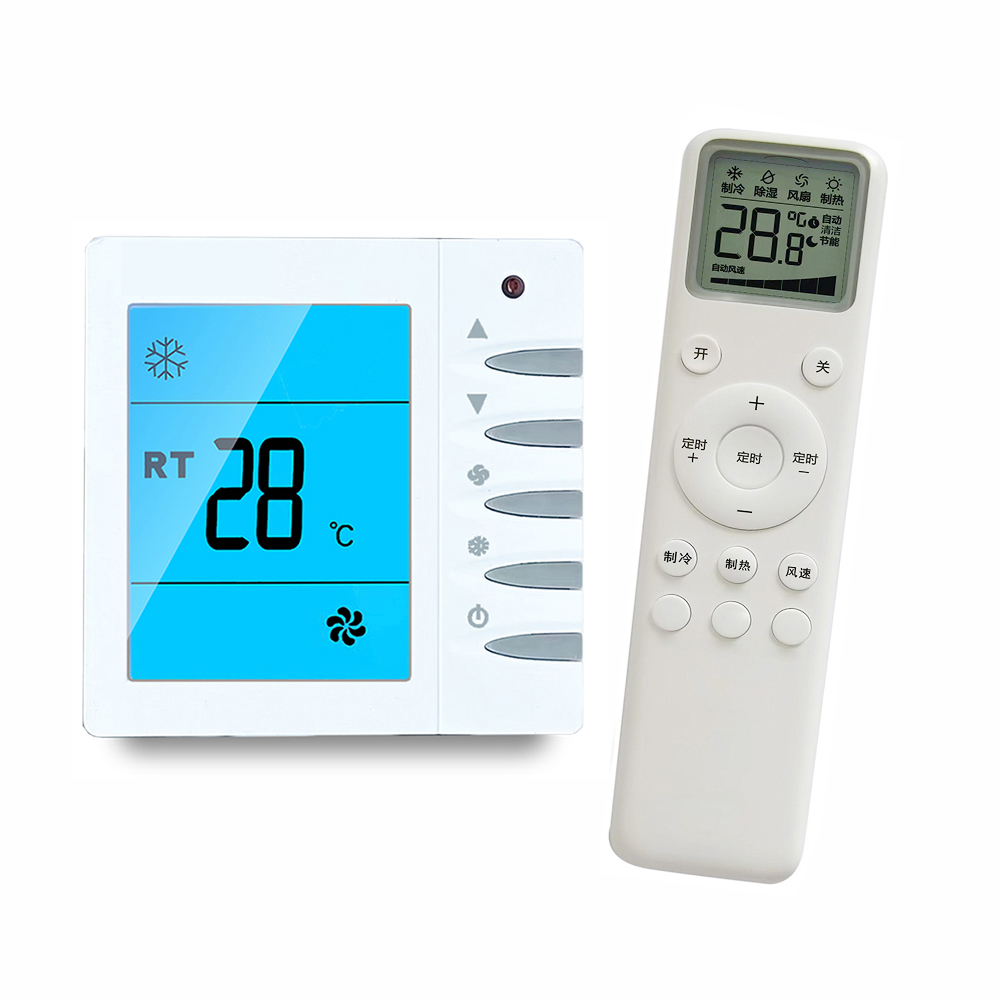

DY-9EIntelligent temperature controller for air conditioner

Installation and Operation Instructions
of DUOYE-9E Thermostat
Introduction to the application

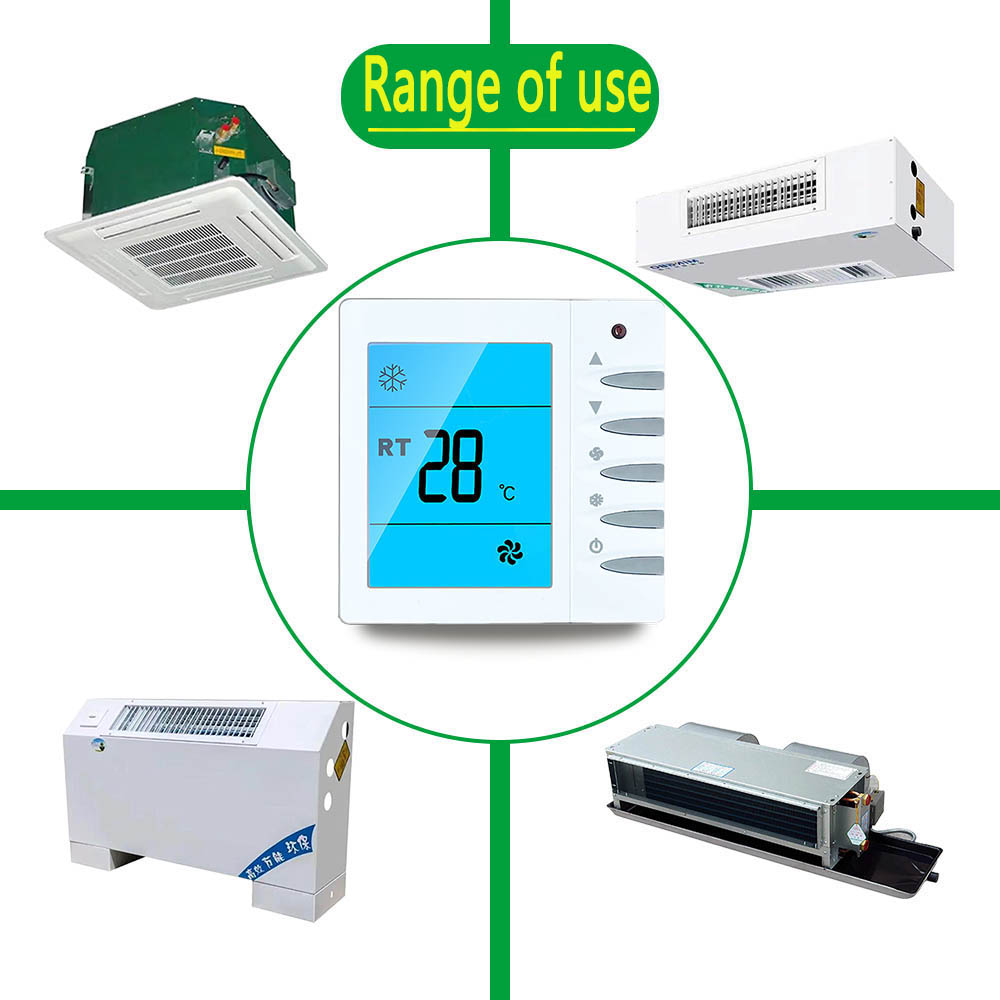

York APC-TMS2000 series digital display thermostat is used for temperature

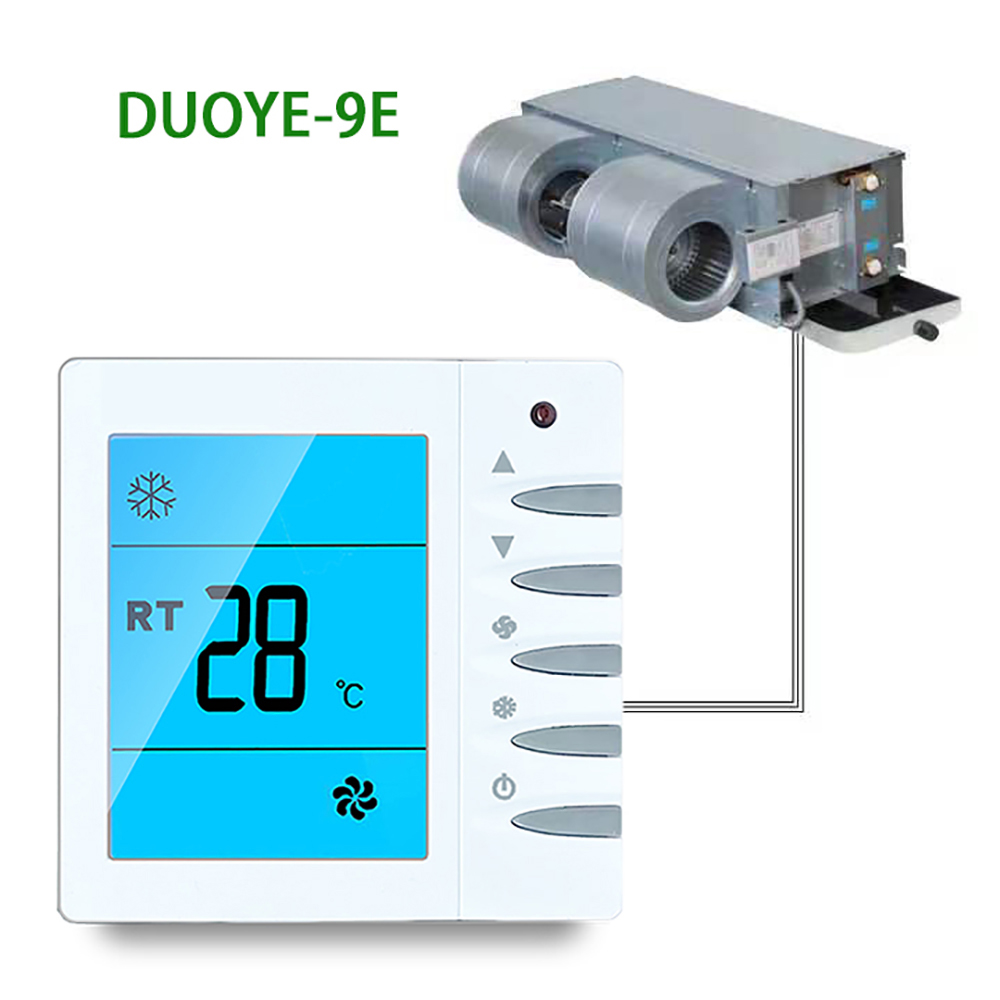

control of two-pipe water system or air system. According to the comparison
result of the ambient temperature and the set temperature, the working state
of the fan coil,the electric valve, the electric ball valve or the air valve at the end
of the air conditioning system is controlled, so as to achieve the purposes of
adjusting the ambient temperature, being comfortable and saving energy.
APC-TM2000 series temperature controller adopts microcomputer control

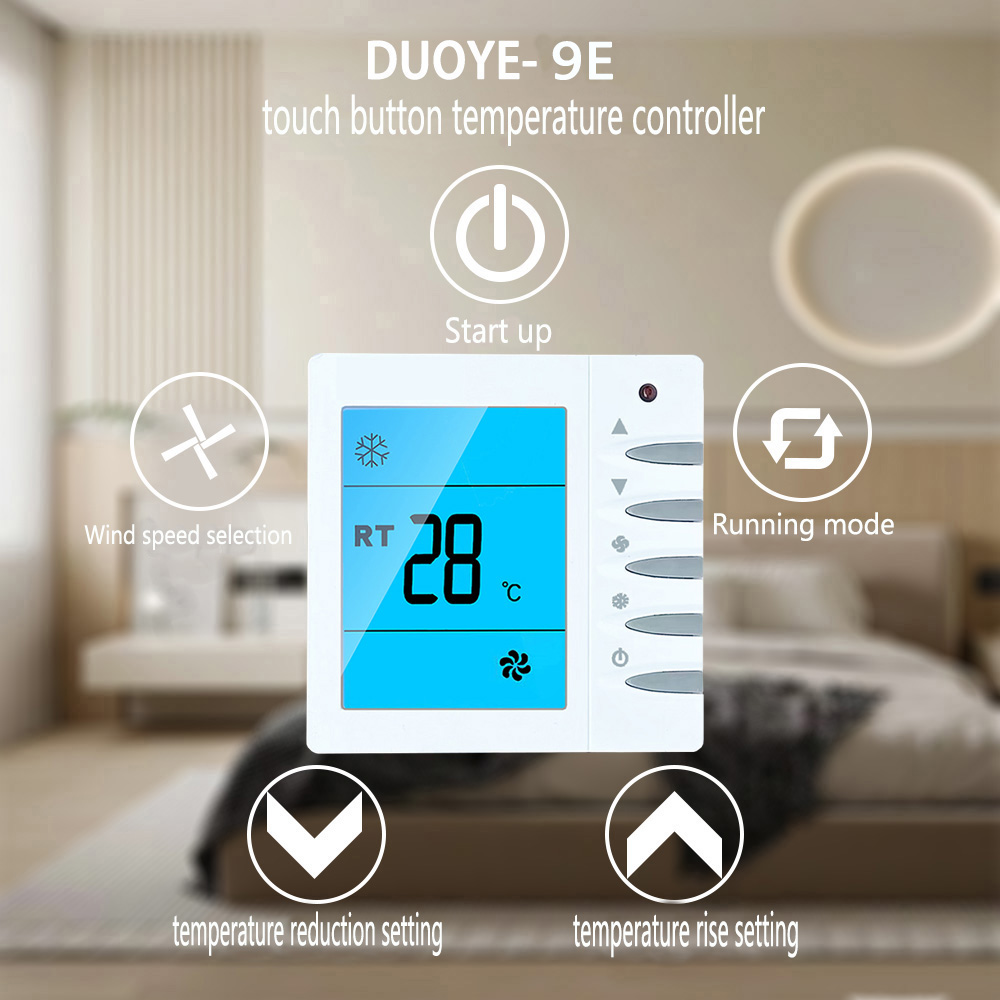

technology.Large LCD screen, elegant design, easy to use, through the button
to select heating,cooling or ventilation mode, as well as set the desired indoor

Operating instructtions
1. If you use hard plastic wire in installation, please bend it in a
appropriate angle;
2. The environment for Thermostat using: temperature between
0℃~45℃.

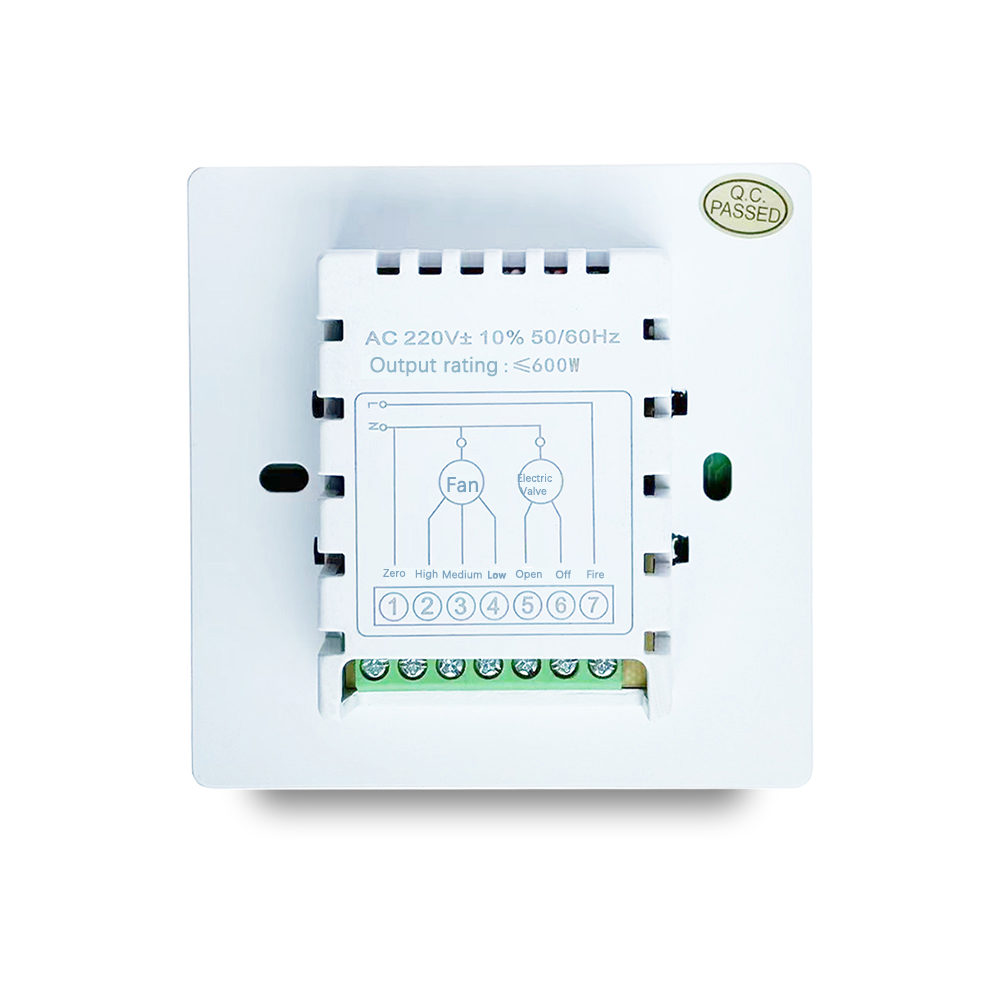

3. Please make the connection according to the wiring diagram;
4. Please install in accordance with the correct installation diagram;
5. One thermostat can only drive one electric fan-coil and a
electro motion valve;
6. One thermostat can only drive one electrical outlet or an
electrical air valve;
7. It can not be used to drive electromagnetic components such as
electromagnetic valve;
8. Do not forcibly draw the wire;
9. Don't squeeze play on the LCD during the installation process,
and please do not knock the thermostat;
10.The LCD type of thermostat is exactitude electronic equipment,
so please do not knock or drop it during the installation, and do not
deform the back shell;
11. Do not drop it into construction mud.

Warranty Service
18 months warranty service is from date of purchase.
Note:The Service Center shall not be liable for any LCD scratch,break
or damage to wire, back board, shell power supply board due to loading
or installation.

Specifications
Set temperature range:5~35℃
Temperature accuracy: ±1℃
Rated output power:  <200W
Consumable power:  <2W
Operating:  AC220V ±10%,50/60Hz
Traverse requirements:   0.5mm²≤ Voltage≤2.5mm2

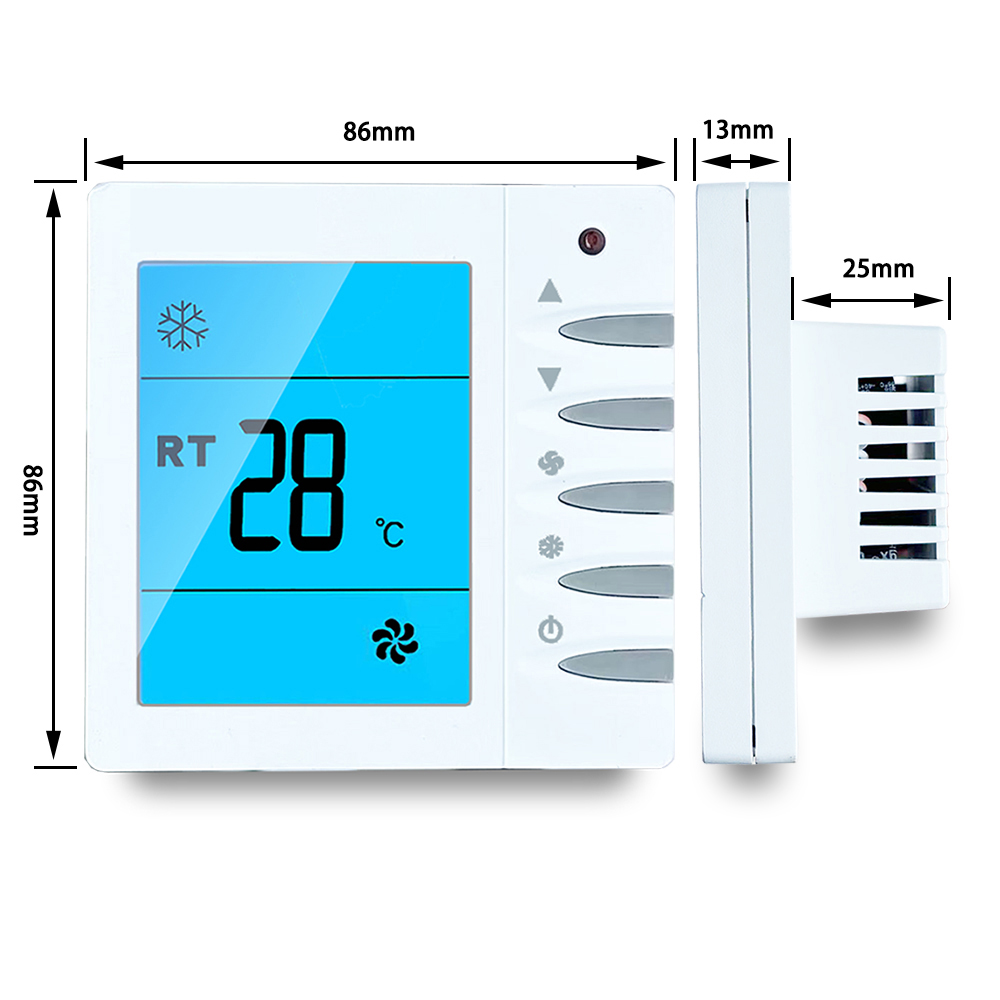

Figure size:   86x86x13mm(Section diameter 86standard box)
Aperture distance for installation:  60mm
