Multi-leaf Intelligent Control Equipment (Ningbo) Co., Ltd. was founded in 2020, formerly known as Zhejiang Yuyao Leiyuan Control Equipment Factory. As a famous Dy-8W-8D Low temperature protection function air conditioner controller suppliers and Dy-8W-8D Low temperature protection function air conditioner controller manufacturer in China, Multi-leaf Intelligent Control Equipment can provide you with quality assurance you can trust. The overall industry experience has accumulated for more than 10 years, is located in China Plastic City. It is a high-tech enterprise engaged in the research and development, production and sales of energy-saving HVAC products. We also wholesale Dy-8W-8D Low temperature protection function air conditioner controller in bulk. Feel free to visit our factory.
Indoor temperature setting
Manual or automatic control fan three-speed conversion
Low temperature protection function
Power-down memory function (E, optional)

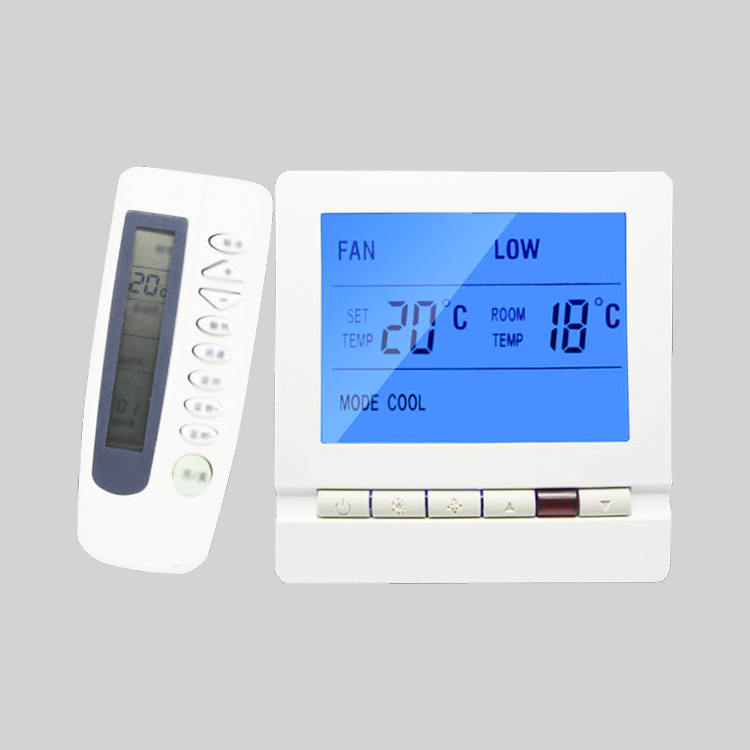

Infrared remote control (-R, optional)
Blue backlight (-L, optional)
Working mode (cooling, heating or ventilation)
Fan speed (low, medium, high or Auto)
Indoor temperature display
Set temperature display
Technical indicators
Temperature sensing element: NTC
Temperature control accuracy: ±1 ℃
Temperature setting: 5～35℃
Display range: 0～50℃
Working environment: 0～45℃
Humidity: 5～95% RH (non-condensing)
Press the key: touch the key
Self-consumption power: < 2 W
Power supply voltage: AC85～260V, 50/60Hz
Terminal block: Capable of connecting 2×1.5 mm2 or 1×2.5 mm2 wires
Load current: 2 A (resistive load), 1 A (inductive load)
Shell: PC＋ABS flame retardant
Dimensions: 86×86×13 mm (width×height×thickness)
Mounting hole pitch: 60 mm (standard)
Protection class: IP 30
DUOYE/8W-8D
Operating instructtions
1. If you use hard plastic wire in installation, please bend it in a
appropriate angle;
2. The environment for Thermostat using: temperature between
0℃~45℃.

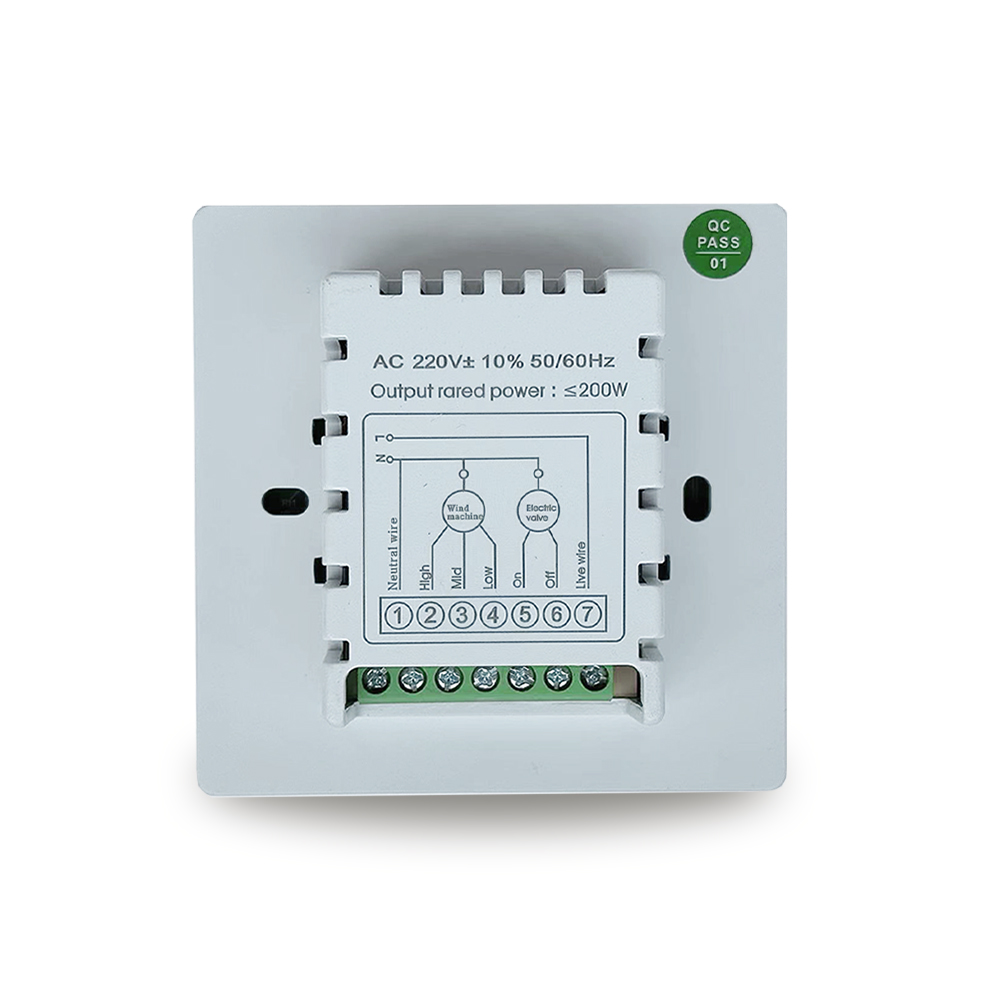

3. Please make the connection according to the wiring diagram;
4. Please install in accordance with the correct installation diagram;
5. One thermostat can only drive one electric fan-coil and a
electro motion valve;
6. One thermostat can only drive one electrical outlet or an
electrical air valve;
7. It can not be used to drive electromagnetic components such as
electromagnetic valve;
8. Do not forcibly draw the wire;
9. Don't squeeze play on the LCD during the installation process,
and please do not knock the thermostat;
10.The LCD type of thermostat is exactitude electronic equipment,
so please do not knock or drop it during the installation, and do not
deform the back shell;
11. Do not drop it into construction mud.
1. If you use hard plastic wire in installation, please bend it in a
appropriate angle;
2. The environment for Thermostat using: temperature between
0℃~45℃.
3. Please make the connection according to the wiring diagram;
4. Please install in accordance with the correct installation diagram;
5. One thermostat can only drive one electric fan-coil and a
electro motion valve;
6. One thermostat can only drive one electrical outlet or an
electrical air valve;
7. It can not be used to drive electromagnetic components such as
electromagnetic valve;
8. Do not forcibly draw the wire;
9. Don't squeeze play on the LCD during the installation process,
and please do not knock the thermostat;
10.The LCD type of thermostat is exactitude electronic equipment,
so please do not knock or drop it during the installation, and do not
deform the back shell;
11. Do not drop it into construction mud.
| Brand: | Multi-leaf |
| Material: | Flame Retardant ABS |
| Interface: | Terminals can be connected to 2.5 square wires |
| Working voltage: | 110V-230V |
| Working current： | 3A |
