Multi-leaf Intelligent Control Equipment (Ningbo) Co., Ltd. was founded in 2020, formerly known as Zhejiang Yuyao Leiyuan Control Equipment Factory. As a famous Dy-805 Digital Display Air Conditioning Controller suppliers and Dy-805 Digital Display Air Conditioning Controller manufacturer in China, Multi-leaf Intelligent Control Equipment can provide you with quality assurance you can trust. The overall industry experience has accumulated for more than 10 years, is located in China Plastic City. It is a high-tech enterprise engaged in the research and development, production and sales of energy-saving HVAC products. We also wholesale Dy-805 Digital Display Air Conditioning Controller in bulk. Feel free to visit our factory.
Product introduction

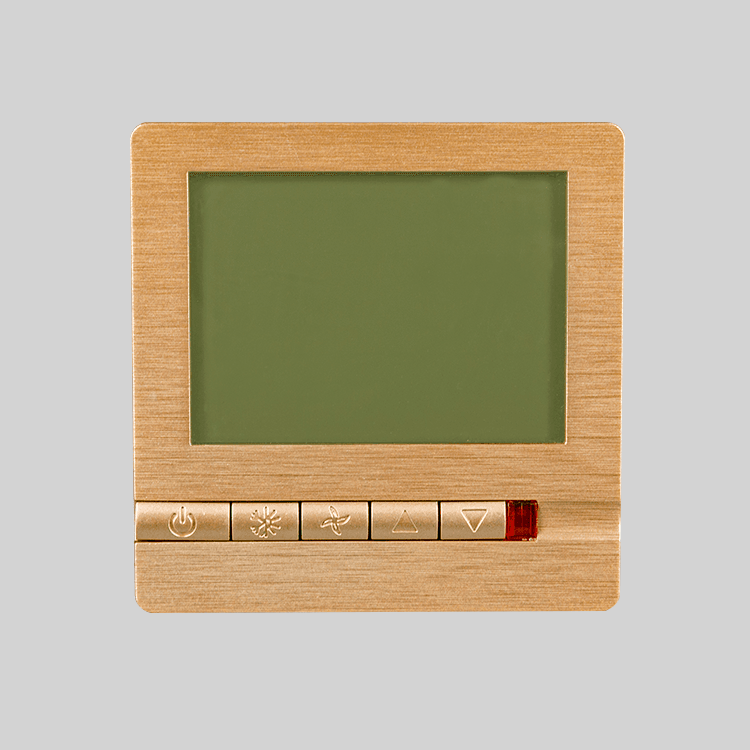

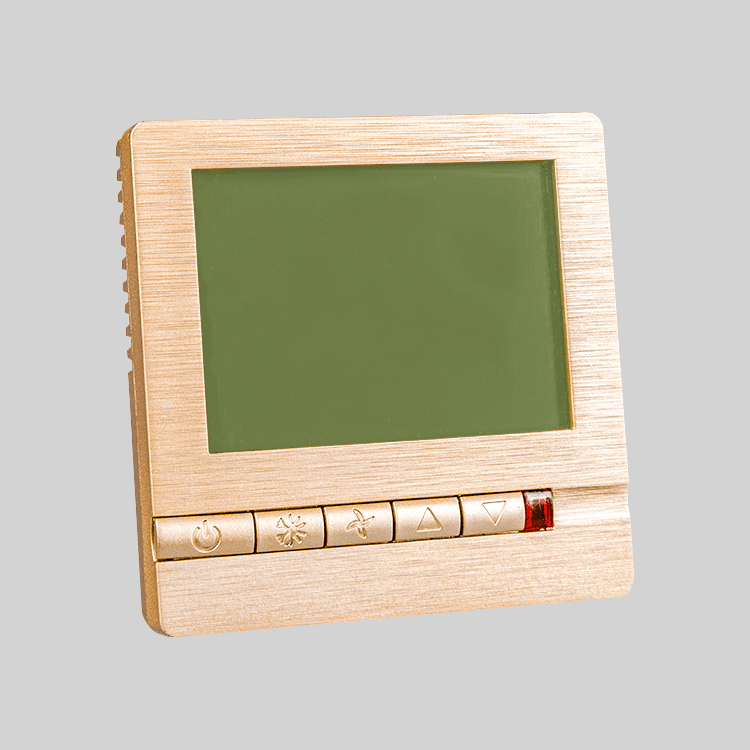

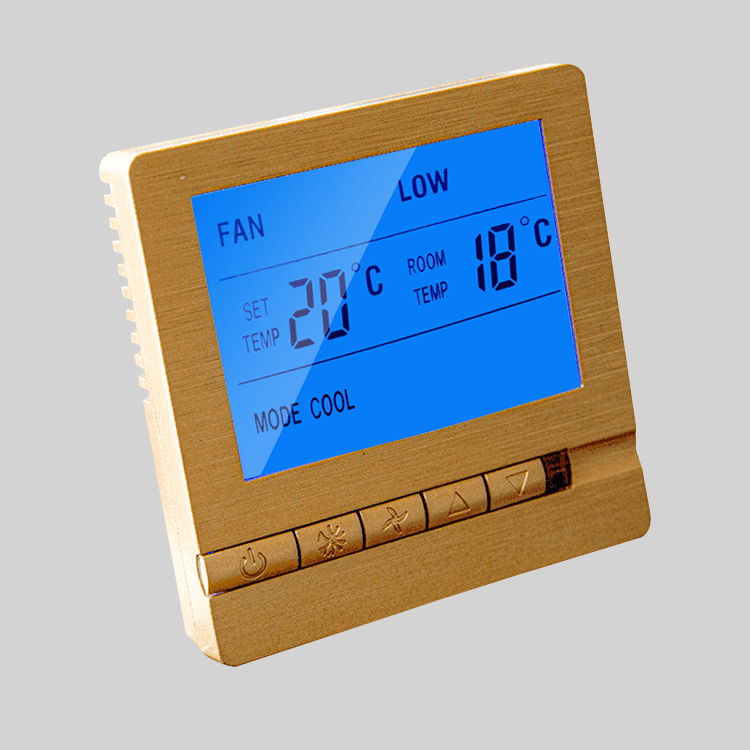

Four-pipe fan coil unit digital display thermostat, used for temperature control of four-pipe water system or air system. Through the comparison of the set temperature of the ambient temperature, the working status of the fan coil unit and the electric valve, electric ball valve or air valve at the end of the air conditioning system is controlled to achieve the purpose of adjusting the ambient temperature, comfort and energy saving. The thermostat adopts microcomputer control technology, large LCD screen, elegant design, convenient and easy to use, and the heating and cooling modes can be selected through the buttons, and the desired indoor temperature can be set.
| Temperature sensor: | NTC thermistor | Power supply voltage: | AC180~260V50/60HZ |
| Control accuracy: | ±1℃ | Self-consumption power: | <1W |
| Temperature setting: | 5~35℃ | Load power: | <300W |
| Display range: | 0~50℃ | Working environment: | 0~45℃ |
| Shell: | PC+ABS flame retardant | Display: | LCD |

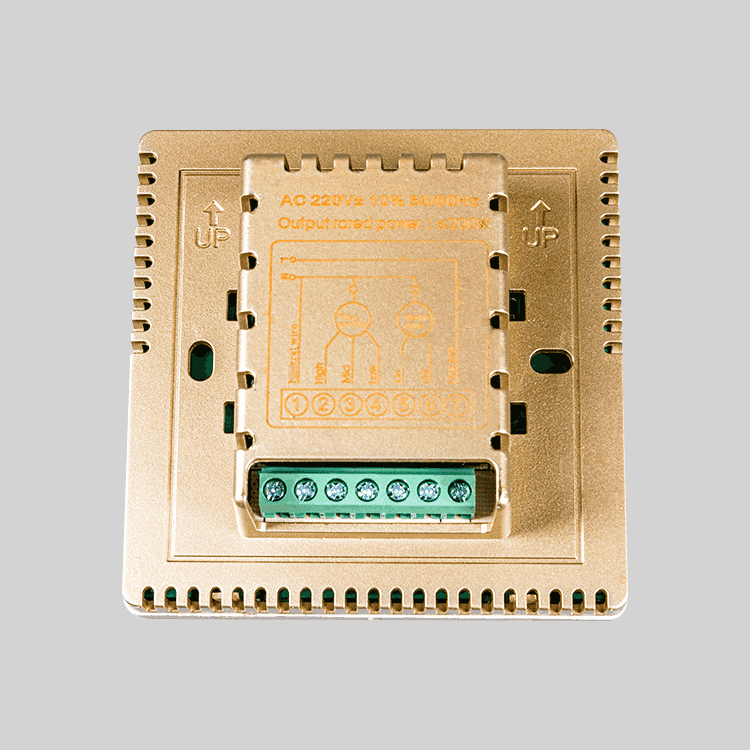

| Terminal: | can connect 2*1.5MM2 or 1*25MM2 wires | ||
| Dimensions: | 86*86*13MM (width*height*thickness) | ||
| Humidity: | 5~95%RH (non-condensing) Installation hole distance: 60MM (standard) | ||
| Brand: | Multi-leaf |
| Material: | Flame Retardant ABS |
| Interface: | Terminals can be connected to 2.5 square wires |
| Working voltage: | 110V-230V |
| Working current： | 3A |
