Smart Wifi Thermostat - 2 pipes Air Conditioning Thermostat Temperature Controller, Room Smart Thermostat, Remote, Voice Control AC Control

Introduction

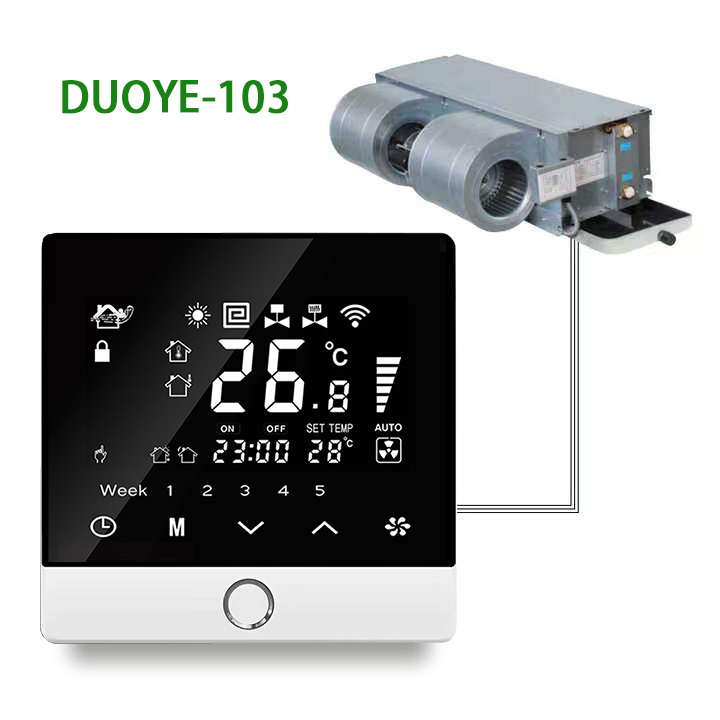

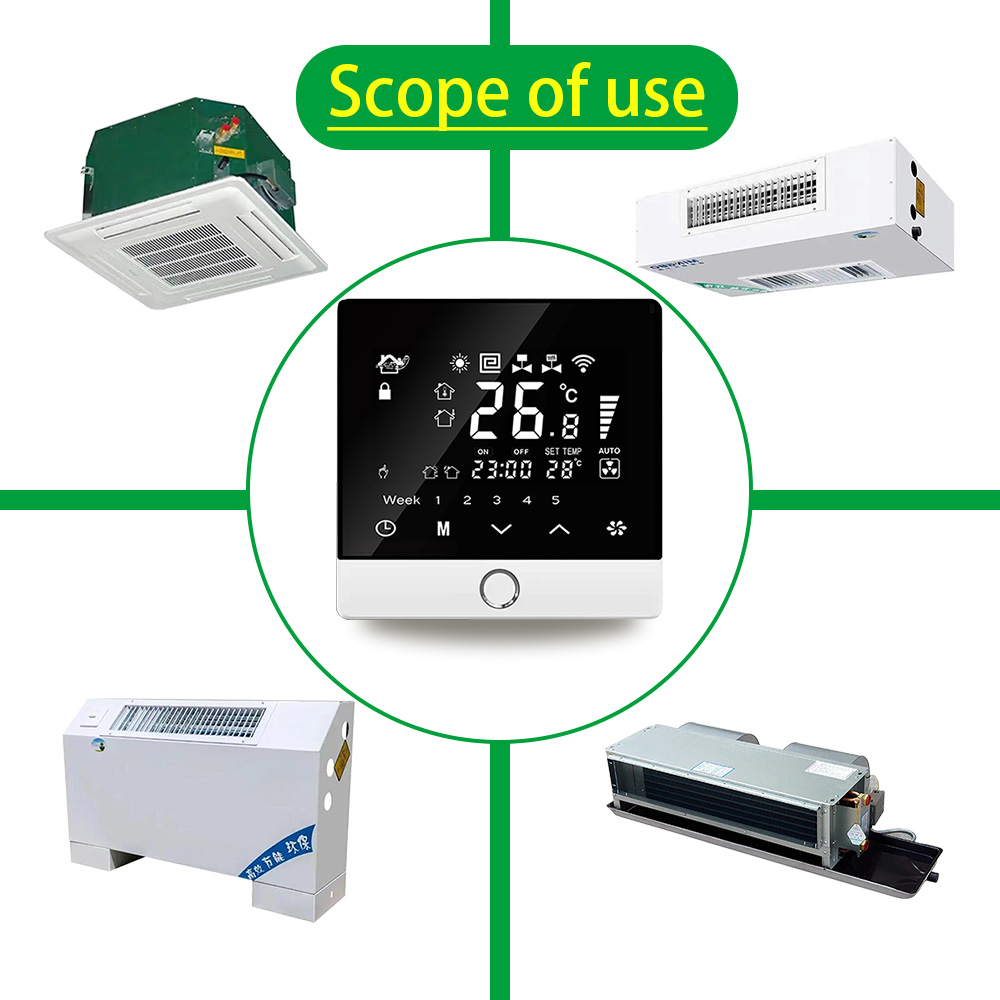

DY-103 intelligent temperature controller adopts new single-chip microcomputer control technology,which
has high reliability and strong anti-interference,suitable to use in fan coil,ventilation system and water
heating system.The thermostat automatically starts or stops the controlled object according to the preset
temperature.
Such as: valve actuator, wall hanging fumace air conditioning floor heating two in one and other two
combined supply system. For you to achieve energy saving and comfortable living environment!
User Operation
Power Key: Touch the On / Off key to turn the system on or off.Press and hold for three seconds toenter WIFI
distribution network mode (WIFI funcion is applicable
M
Mode key: Short press to switch cooling/heating/ventilation model.
Or press and hold to switch between manual and programmed modes.
∧VUp/ Down key: Touch the Up and Down keys to set the temperature and adjust.
Adjust the air volume.In the power -on state:Short press toadjust the time,Press and hold fortiming and setting
In the shudown state:Press and hold this key in order to enter the programmed temperature
setting
Anti-frozen function
In the state of shutdown, the thermostat will turn on the heating device automatically
When the room temperature is below 5*C. when the room temperature is above 7°C,
the thermostat will turn off the heating device automatically. To enable this function,s
ee (Advanced Settings).

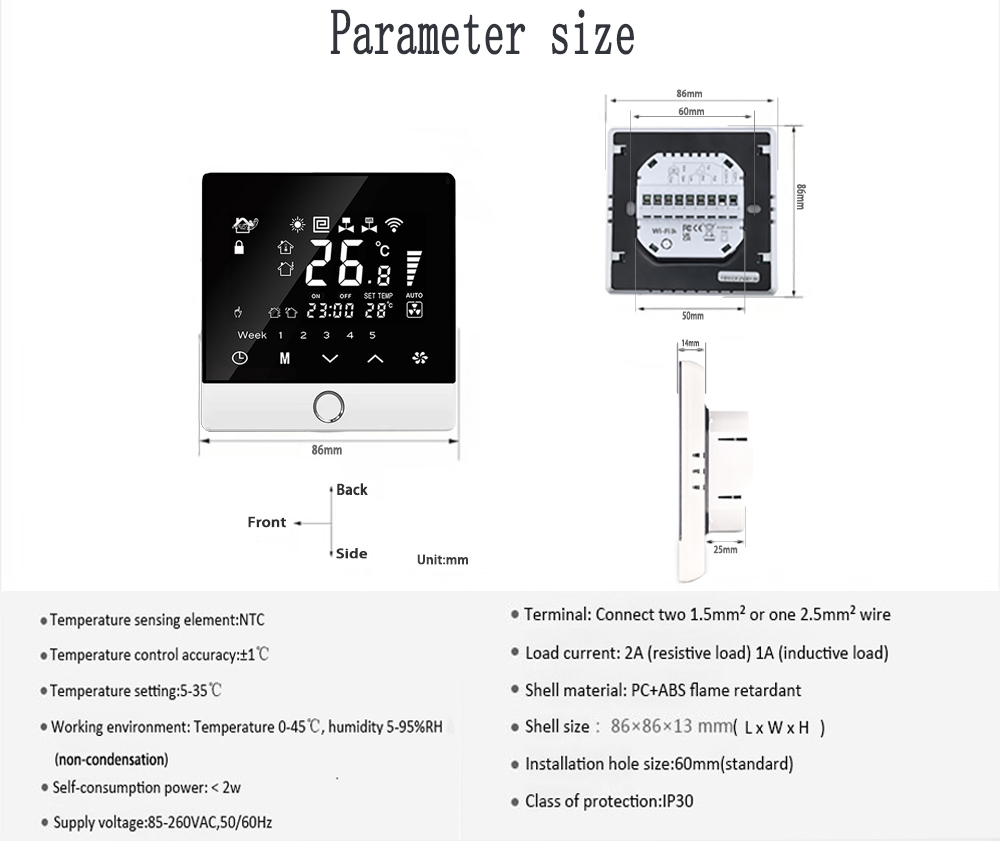

Technical data
1.Temperature sensor:NTC 2. Temperature accuracy:±1*C
3. Power consumption:< 1W4.Voltage:AC110V-230V 50/60Hz
