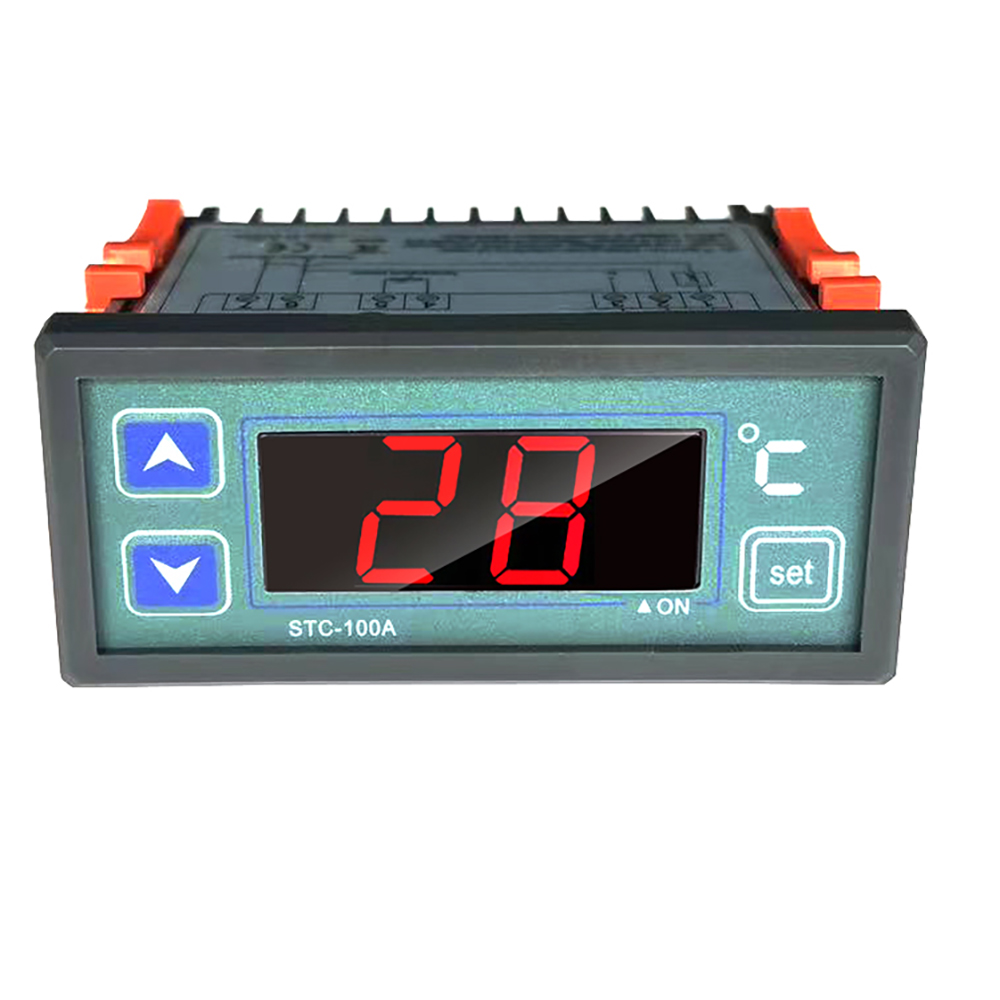

STC-100A Temperature Controller Cool Heat Refrigerator Thermostat Regulator Thermoregulator Thermocouple Sensor,AC 220V

STC-100A Operation Instructions
Main functions:
Switch the mode between heating and retrigerating; controlling the temperature by
adjusting both the temperature setting value and difference value; Delay protection when
refrigerating and heating starts; Limit the temperature setting range;Calibrate the temperature;
Alarm when sensor error.
Size:

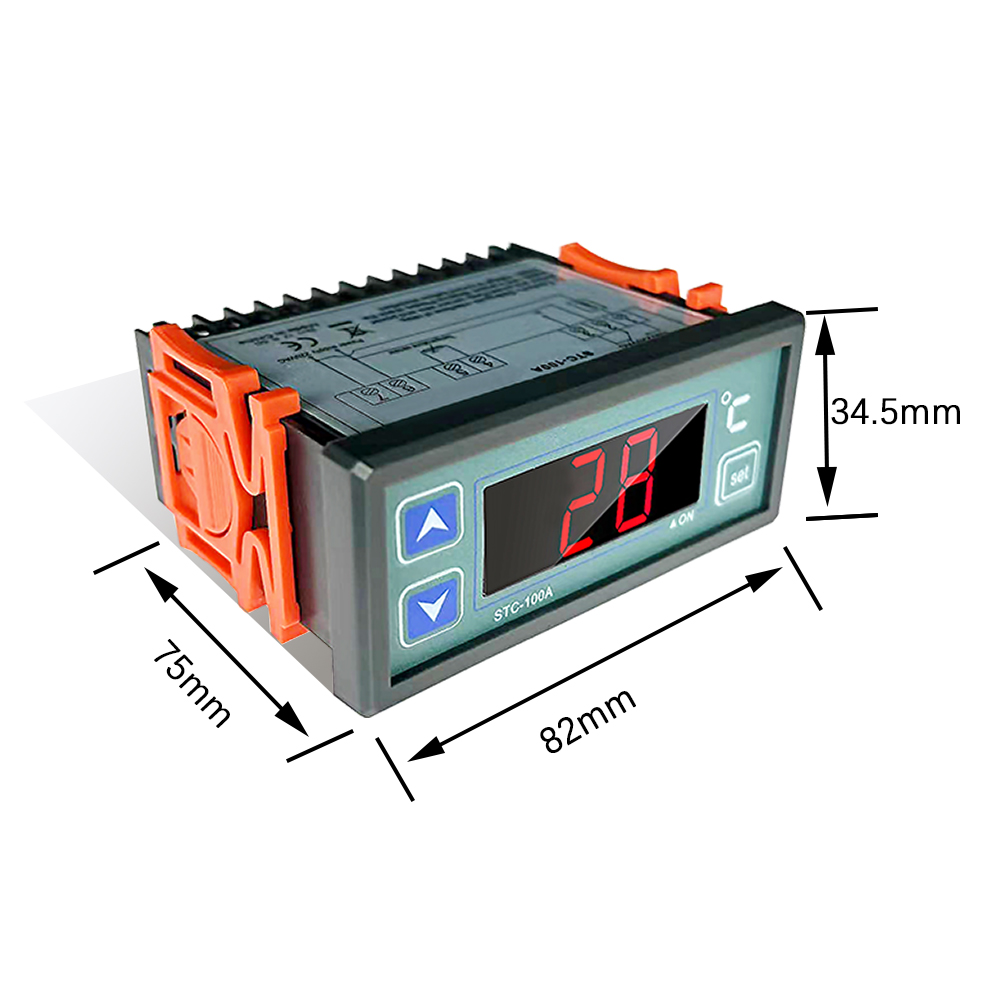

●Front panel size: 77(L)* 34.5(W)mm
Installing hole size: 71(L)x29(W)mm
Product size: 77(L) x 34.5(W)x65(D)mm
●Sensor wire length: 2 meters (including the probe)
Technical Parameters:
● Power supply:220VAC+10%/-15%,50/60Hz
● Power consumption: <3W
●Temperature measuring range:-40℃-+70℃Temperature controlling range:-40℃~+70℃
●Resolution:1℃
Accuracy: ±1 ℃±0.5digit
Relay output capacity:10A(0.5HP)/220VAC
Relay time when sensor error:1min
Sensor type:NTC sensor
Safety level of the front panel:IP54
Operating temperature:0℃-+60℃
Storage temperature: -30℃-+75℃
●Relative humidity:+20%-+85%(No condensate)

Operation instruction:
1.The way to adjust temperature setting value.
When the controller under normal working status, press "set" key to display the current
temperature setting value. press the ▲ key or ▼key to increase or decrease the
temperature setting value, if no key operation within 4 seconds, system will save the modified
parameter value and back to normal working status.
Nate:LED displays "Er" if there is an error during the memory process, and system back to
normal display status after 3 seconds.
2.The way to modify the parameter setting value;
Under controller normal warking status, press and hold "set" key for more than 4 seconds to
enter into parameter moditying mode, and LED displays the parameter item code:'HC".
Pressing▲key or ▼ key can choose the desiring parameter code, then press "sef" key to
confirm the desired parameter ilem, by pressing both "set" and ▲ key or ▼key, LEDaccordingly displays the increase or decrease the parameter value. if na key operation within
4 seconds, system will save the modified parameter value and back to normal display status.
Note:LED displays "Er" if there is an error during the data memory process, and syslem back
to normal display status after 3 seconds.
3.The way lo restore the system data;
After electrified, controller checks the parameler setling. LED displays 'Er' when error exits,
then pressing any key will restore the defauil parameter setting, and work normally, It is
advised to reset the parameter under this situalun.
