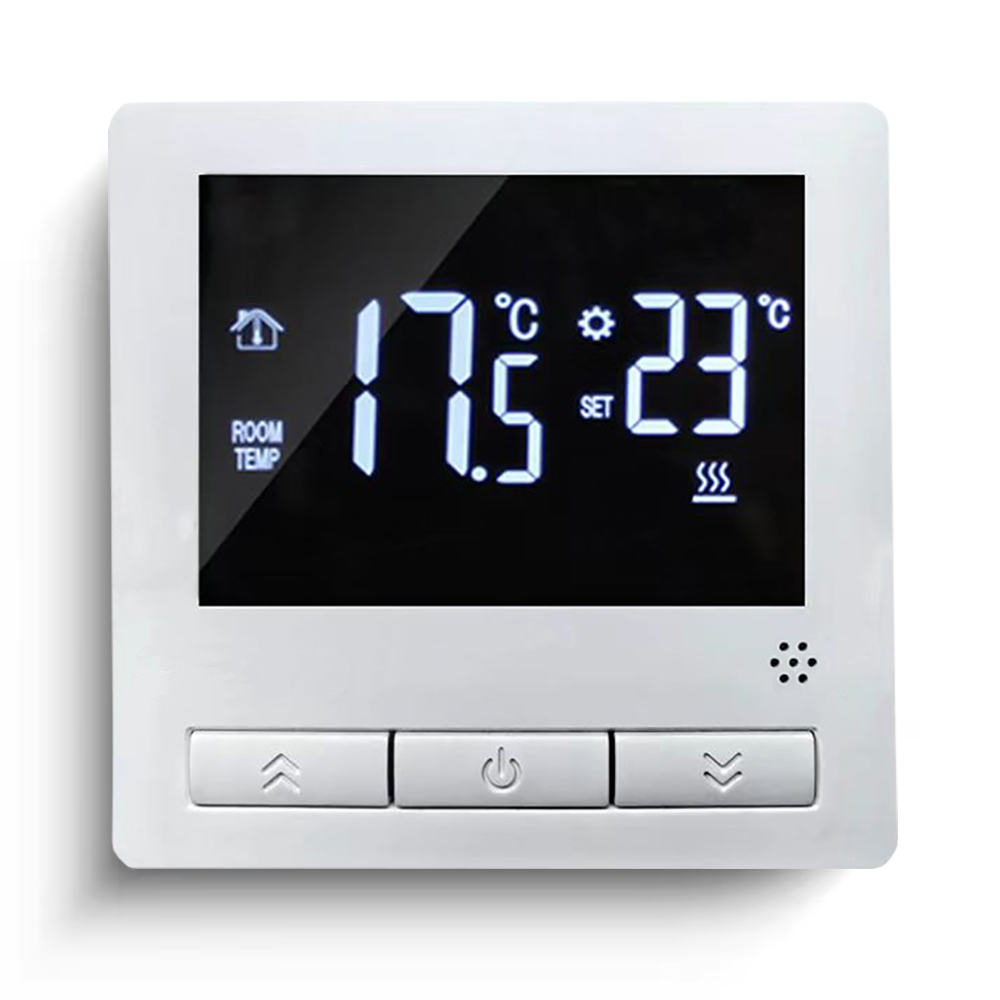

DY-D006 Floor heating thermostat

Application
The thermostat is designed for control of electric heating devices (Built in sensors for
measuring room temperature and external sensor for high temperature protection,
to prevent heating device burned due to high temperature).
User Operation
Power Key:Touch the On/ Off key to turn the system on or off.
M Mode Key :You can select "period control mode"or “manualmode”by this key.
AV Up / Down key: Touch the Upand Down keys to set the temperature and adjust
system parameters.And press Up and Down simultaneously and hold for 5 seconds
to enter lock key function.
Clock key: You can adjust the time and the week by this key.
Manual mode: Set the temperature manually by this key.
Automatic mode: Adjust to the automatic mode, the thermostat will work cyclically
by week programming.
Anti-frozen function
In the state of shutdown, the thermostat will turn on the heating device automatically
When the room temperature is below 5*C. when the room temperature is above 7*C, the
ther mostat will turn off the heating device automatically.
Technical data
1.Temperature sensor: NTC
2.Temperature accuracy:±1*C
3.Power consumption:<1W
4.Voltage:AC230V 50/60Hz

5. Load current: 3A/16A
6.Temperature setting :5~90℃
7.Key:Touch key
Programming: 6 -event time and temperature
In the shutdown state, long press mode key " M " and the clock key " "for 5 seconds
to enter programming mode. you can switch parameters by mode key. After entering the
programming mode,press mode key to adjust " hour" ,then press mode key to adjust
"minute".Press the mode key again to adjust temperature.
1.Wake-up 2.Leave 3Return(am)4.Leave(pm) 5.Return(pm)
6.Sleep

Advanced setting (qualified person preferred)
Press  and at the same time enter the mode of advanced setting immediately
when the thermostat is turned off. The following seven functions can be chosen by the  key.

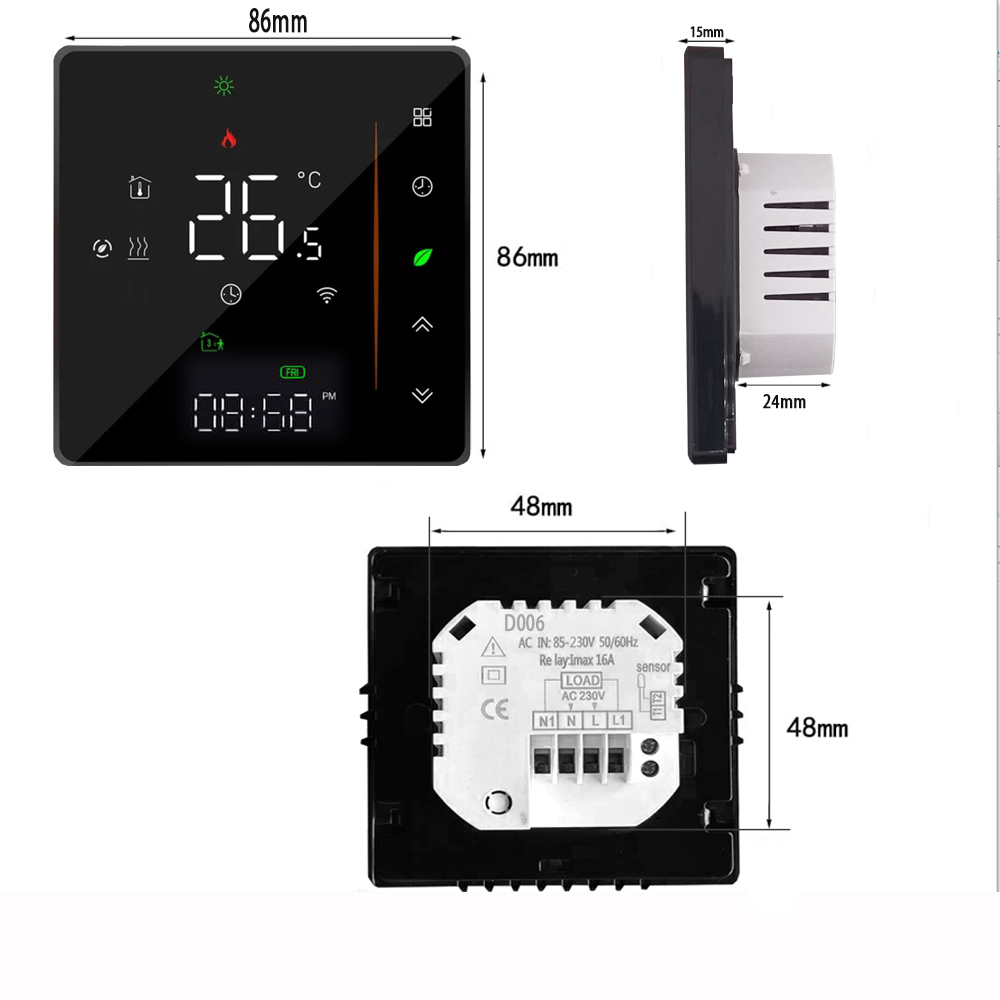

Mounting steps
